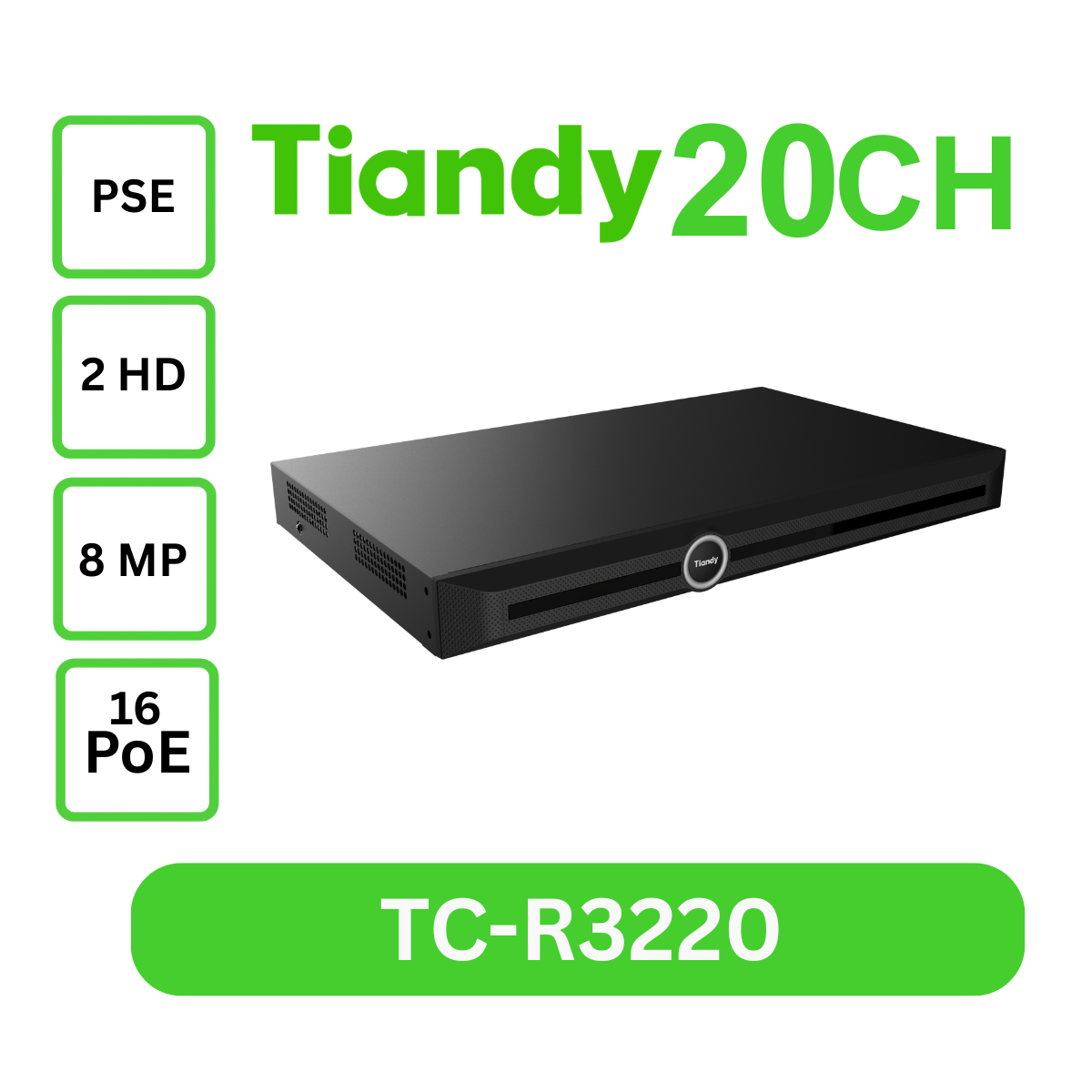

NVR 20ch 16POE 8mp 2HDD TC-R3220 I/B/P16/K/V3.0

• Up to 20-channel input
• 16 PoE ports
• Up to 8MP Resolution Recording
• Incoming Bandwidth 120Mbps
• Outgoing Bandwidth 100Mbps

SKU: TC-R3220 I/B/P16/K/V3.0

Description

Date Title Type Download
2021-08-03 TC-R3220 Spec-I-B-P16-K-V3.0 pdf



Input
Video Input 20-ch
Max Resolution 8MP
Two-way Audio Input 1-ch, 3.5mm
Bandwidth Income 120Mbps; Outgoing 100Mbps
Output
HDMI/VGA Output HDMI 1-ch, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1280×720, 800 ×600, 1024×768, 1366×768, 1440×900, 1280×800
VGA 1-ch, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800
Screen Split 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B
Audio Output 1×RCA
Decoding
Decoding Format S+265/H.265/H.264
Recording Resolution 8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Capability 1×8MP, 1×6MP, 1×5MP, 2×4MP, 4×1080P, 8×720P, 20×4CIF
Synchronous Playback 1×8MP, 1×6MP, 1×5MP, 2×4MP, 2×3MP, 4×1080P, 8×720P
Records Encryption Yes
Hard Disk
SATA 2 SATA interfaces for 2 HDDs
Capacity Up to 10TB for each HDD
eSATA Interface N/A
Array Type N/A
External Interface
Network Interface 1xRJ45 self-adaptive 10/100/1000 Mbps network interface
USB Interface 2xUSB 2.0
Serial Interface N/A
Alarm In/Out 4/1
Network
Protocol TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS
System Compatibility ONVIF (PROFILE S/T/G), SDK, P2P
POE
POE Interface 16xRJ45 self-adaptive 10/100 Mbps network interface
Power per POE Port 30W
Max Current per POE Port 600mA
General
Web Version Web6
Language Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic
Operating Conditions -10℃~55℃, 10%~90% RH
Power Supply 100~240V AC, 50~60 Hz
Consumption (without HDD)  ≤25W (without HDD)
Chassis 1U
Dimensions 47.5×277×440mm, (1.87×10.91×17.32 inch)
Weight (without HDD) 3.05Kg (6.72lb)
