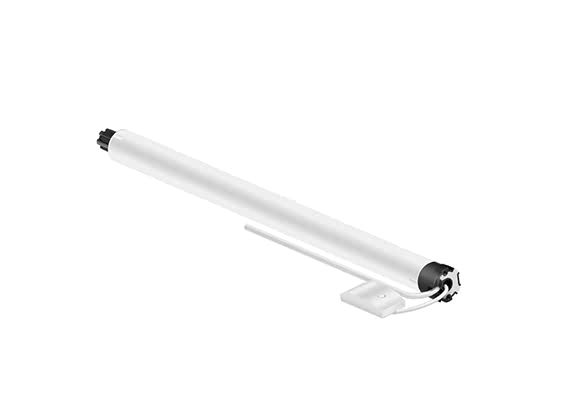

Roller Shade Motor WSER40Q-8/19

• Designed for track control of roller shutters and blinds
• Electronic limit switch
• Tilting to adjust light
• One tap to control the whole shading system
• Scheduled task
• Accurate control by percentage
• External ZigBee module
• Third limit function
• Easy installation and operation
SKU: WSER40Q-8/19

Description

WSER40Q-819 Detail Page1 WSERQ40-8-19 Detail Page_ 2 WSERQ40-8-19 Detail Page_3

Spec

Download

 Technical Details
  Communication  ZigBee
  Torque  8N.m
  Output Speed  12r/minute
  Rated Power  155W
  Rated Voltage  230V
  Rated Current  0.68A
  Running Time  4 Minutes
  Protection Index  IP44
  Maximum Turns  ∞
  Net Weight  1.4 KG
  Dimensions  40 x 40 x 525 mm
  Pipe Diameter  35 mm
