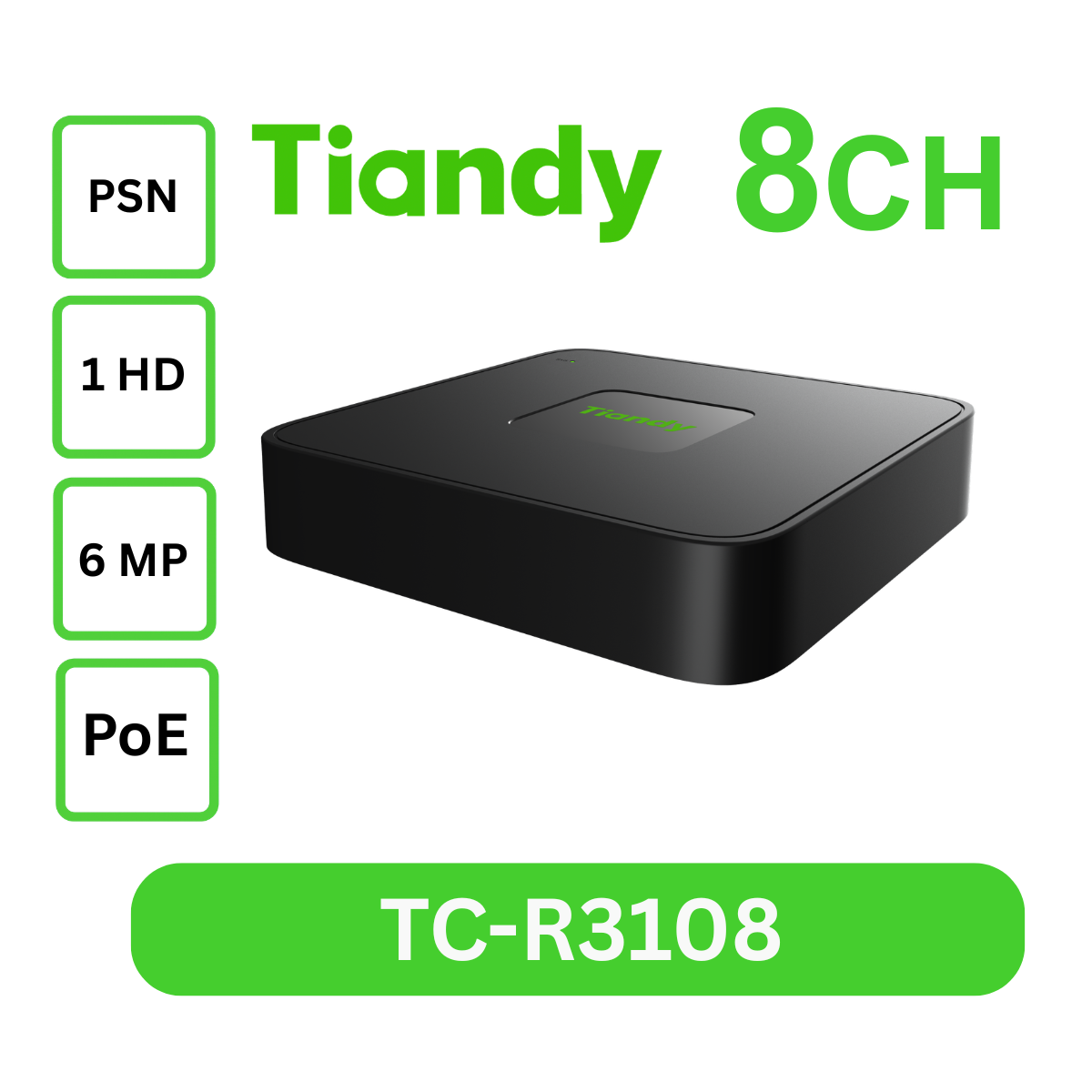

NVR 8ch 8POE 6mp TC-R3108 I/B/P8/C/Eu/L/S
• Up to 8-channel input
• 8 PoE ports
• Up to 6MP Resolution Recording
- Description
- Additional information
Description
| Date | Title | Type | Download |
|---|---|---|---|
| 2023-11-23 | TC-R3108 Spec I-B-P8-C-Eu-L-S |  |
| Video and Audio | |
| Access Channel | 8 |
| Incoming Bandwidth | 60Mbps |
| Outgoing Bandwidth | 40Mbps |
| Resolution | 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Preview decoding capability | 6MP*1,5MP*1,4MP*2,3MP*2,1080P*4,720P*8,4CIF*8 |
| Playback decoding capability | 6MP*1,5MP*1,4MP*1,3MP*2,1080P*3,720P*4 |
| Video Output | 1*HDMI |
| HDMI Output | HDMI:1024*768(60Hz),(720P )1280*720(50Hz/60Hz),1280*800(60Hz),
1440*900(60Hz),(1080P)1920*1080(50Hz/60Hz),(4K)3840*2160(30Hz) |
| VGA Output | N/A |
| Multi-screen Display | 1/3/4/5/6/7/8/9 |
| Third-party Camera Access | ONVIF;RTSP |
| Audio Input | N/A |
| Audio Output | N/A |
| Two-Way Audio | N/A |
| Liveview display | N/A |
| Compression | |
| Video | S+265;H.265;S+264;H.264 |
| Audio | G711A;G711U;AAC;ADPCM_DIV4 |
| Stream Type | Video;Video & Audio |
| Network | |
| Network Protocol | ARP;DDNS;DHCP;DNS;HTTP;ICMP;IGMP;IPv4;IPv6;NTP;RTCP;RTP;RTSP;SSH;TCP/IP;UDP;UPnP |
| Mobile Phone Access | Android;iOS;P2P_A |
| System Compatibility | CGI;SDK |
| Web | IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+ |
| Record Playback | |
| Multi-channel Playback | 4 |
| Record Mode | alarm recording;Schedule recording |
| Storage | Local HDD |
| Backup | USB storage device |
| Playback Function | Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full screen/backup (videoEditing) |
| Alarm | |
| General Alarm | Motion;Mask Alarm;Video Loss |
| Alert Alarm | IP Conflict;MAC Conflict;Network Disconnected;No disk;Illegal Access;Disk Full;Disk R/W error;Video Abnormal;
Abnormal found in smart of disk;Abnormal temperature of the disk;POE overloaded;IPC voltage abnormal;RTC failure |
| Intelligent Analytics | |
| VCA Detection by Camera | Advanced Intelligence |
| VCA Search | N/A |
| Face Detection by Camera | |
| Performance | N/A |
| Face Attributes | N/A |
| Face Picture Library | N/A |
| Face Picture Comparison | N/A |
| External Port | |
| HDD | 1 SATA ports,up to 6TB for a single HDD. The maximum HDD capacity varies with environment temperature |
| Disk Group | N/A |
| RAID | N/A |
| eSATA | N/A |
| USB | 2*USB2.0 |
| HDMI | 1*HDMI |
| VGA | N/A |
| RJ-45 | 1*RJ-45,10/100 Mbps self-adaptive Ethernet port |
| SATA | 1 SATA interface |
| RS232 | N/A |
| RS485 | N/A |
| Alarm I/O | N/A |
| POE | |
| POE Interface | 8×RJ45 self-adaptive 10/100 Mbps network interface |
| POE Gross Power | 45W |
| Power per POE Port | 30W |
| Max Current per POE Port | 600mA |
| General Parameter | |
| UI Language | English;Spanish;Italian;French;Dutch;German;Portuguese |
| Power Supply | DC48V 1.35A |
| Power Consumption | ＜10W(without HDD&without POE) |
| NetWeight | 0.45kg |
| GrossWeight | 0.85kg |
| Boundary Dimensions | 200(L)200(W)43(H)mm |
| Package Dimensions | 315(L)70(W)235(H)mm |
| Operating Temperature | -10℃～+55℃ |
| Operating Humidity | 10%~90%RH |
| Storage Temperature | -10℃～+55℃ |
| Storage Humidity | 10%~90%RH |
| Package Kit | Network Video Recorder;Screw pack;Mouse;Power adapter |
