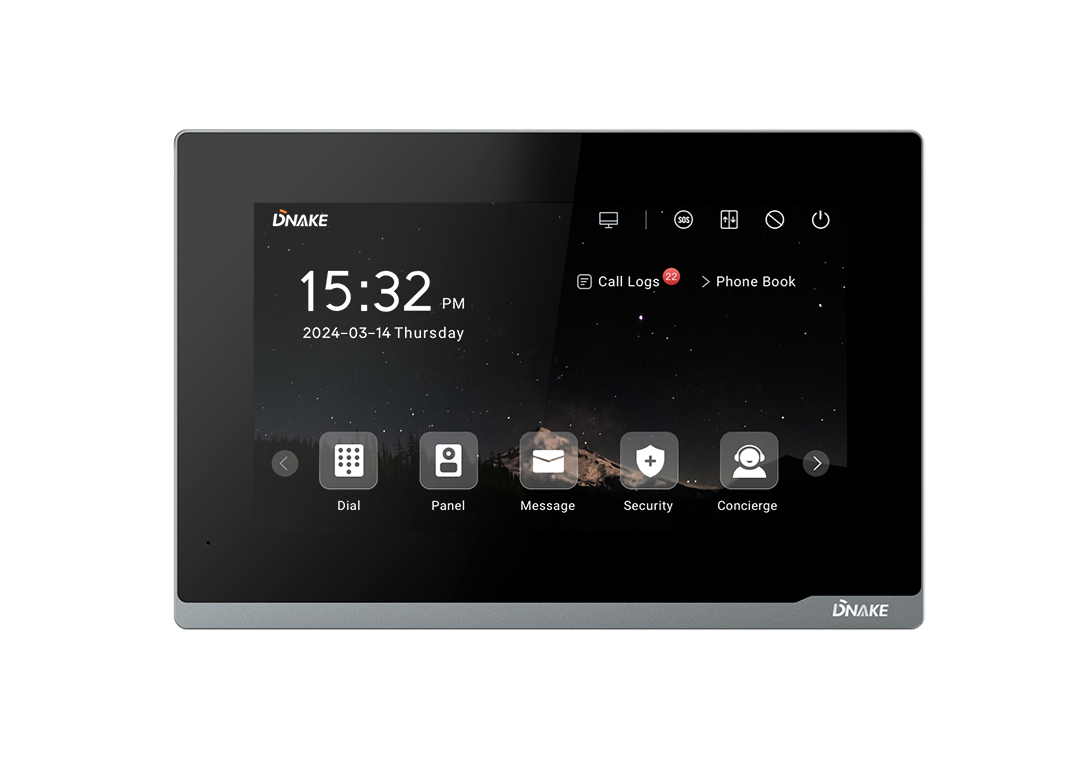

DNAKE SIP 7″ Linux WiFi Monitor E217
• 7” capacitive touch screen, 1024 x 600
• 8-ch alarm input, 1 x RS485
• Powered by PoE or power adapter (DC12V/2A)
• Support Wi-Fi
• Optional dual network ports
• Optional easy-to-install back cover
• Support monitoring 8 IP cameras
• Surface or desktop mounting
• Support TF card
• Quick installation and remote management via web interface
• Easy integration with elevator control system
- Description
Description
| Physical Property | |
| System | Linux |
| Front Panel | Plastic |
| Power Supply | PoE (802.3af) or DC12V/2A |
| Standby Power | 2W |
| Rated Power | 9W |
| Wi-Fi | IEEE802.11 b/g/n,@2.4GHz |
| Installation | Surface Mounting/Desktop |
| Dimension | 195 x 130 x 14.5mm;
195 x 130 x 21mm (with Easy-to-Install Back Cover) |
| Working Temperature | -10℃ – +55℃ |
| Storage Temperature | -40℃ – +70℃ |
| Working Humidity | 10%-90% (non-condensing) |
| Display | |
| Display | 7-inch TFT LCD |
| Screen | Capacitive touch screen |
| Resolution | 1024 x 600 |
| Audio & Video | |
| Audio Codec | G.711 |
| Video Codec | H.264 |
| Networking | |
| Protocol | SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
| Port | |
| Ethernet Port | 1 x RJ45, 10/100 Mbps adaptive |
| RS485 Port | 1 |
| Power Output | 1 (12V/100mA) |
| Doorbell Input | 8 (Use any alarm input port) |
| Alarm Input | 8 |
| TF Card Slot | 1 |
