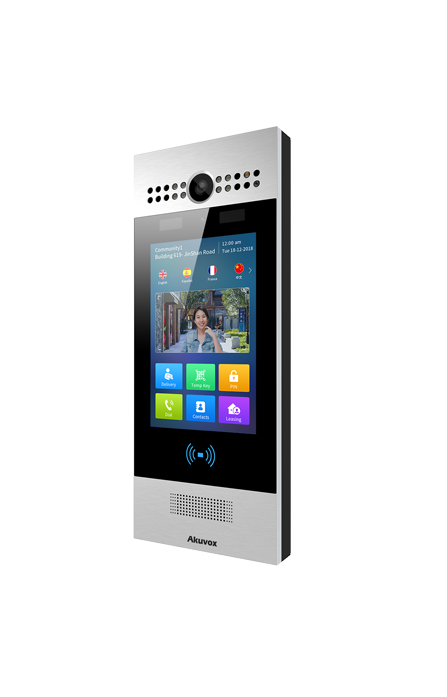

Akuvox Android Video Doorstation R29S

Description

World’s First Facial Recognition Android Doorphone



At a Glance

• Enables audio and visual monitoring of doors/gates which increase security on residential or commercial premises;
  Dual camera for anti- counterfeit, completely solve all kinds of photos and video deception on various carries;
  Face verification accuracy >99.9%; face comparison speed <0.5s per person; false recognition rate <0.1%;
  Allows both audio and video communication to an IP phone, mobile client, or softphone;
  Enables the ability to remotely control the door/gate;
  Presents information and user navigation options unique to your business;
  Speeds response time to visitors, delivery and service personnel that require access;Physical & Power
  Front panel: Aluminum
  RAM / ROM: 2GB / 16GB
  Display: 7 Inch IPS LCD
  Screen: 7 Inch capacitive touch screen
  Main Camera: 3M pixels, automatic lighting
  Auxiliary Camera: 1M pixels
  Light sensor: Support
  Infrared sensor: Support
  Wiegand port: Support
  RS485 port: Support
  RF card reader: 13.56MHz & 125kHz
  Relays ln/out: 3/3
  Microphone: -32dB
  Speaker: 8Ω / 2W
  Bluetooth: Support
  Ethernet port: RJ45, 10/100Mbps adaptive
  802.3af Power-over-Ethernet
  12V DC connector (if not using PoE)
  IP/IK Level: IP65/ IK06
  Installation: Flush-mounted & Wall-mounted
  Flush-mounted DIM: 324x130x60mm
  Wall-mounted DIM: 324x130x33mm
  Working Humidity: 10-90%
  Working Temperature: -20°C – +55°C
  Storage Temperature: -40°C – +70°C

  Audio
  SIP v1 (RFC2543), SIP v2 (RFC3261)
  Narrowband audio codec: G.711a, G.711μ, G.729
  Broadband audio codec: G.722
  DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
  Echo Cancellation
  Voice Activation Detection
  Comfort Noise Generator



  Video
  Sensor: 1/3″, CMOS
  Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
  Video codec: H.264
  Video resolution: up to 1920x1080p
  Max. image transfer rate: 1080p – 25fps
  Viewing angle: 120*(H)/ 64°(V)
  High intensity IR LEDs for picture lighting during dark hours with internal light sensor
  White LEDs for QR code scanning
  Compatible to 3rd-party video components,



  Networking and Protocol
  Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP



  Door Entry Feature
  Android OS for any 3rd-party software or customization
  Relays controlled individually by DTMF tones
  Multi-way Unlock: Face, IC/ID Card, PIN and BLE
  Camera permanently operational
  Auto-night mode with LED illumination
  White balance: auto
  Minimum illumination: 0.1LUX



  Deployment & Maintenance
  Auto-Provisioning
  Web management portal
  Web-based packet dump
  Configuration backup / restore
  Entry log export
  Access table export / import
  Firmware upgrade
  System logs (include door access logs)
