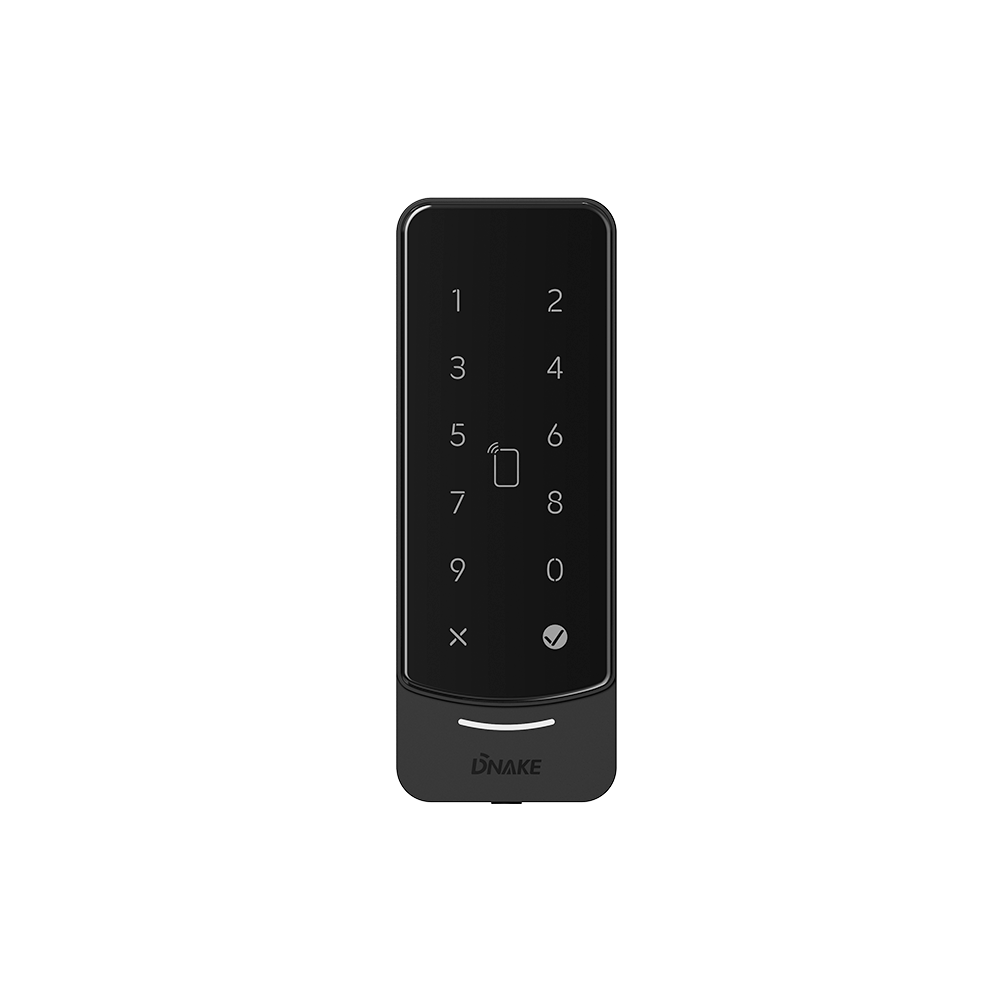

Access Control Terminal AC02
• Durable aluminum alloy and 2.5D tempered glass
• Slim 50mm design for narrow spaces
• IP65 & IK08 certified
• Door entry methods: RFID cards, PIN, NFC, Bluetooth, APP
• Secured access with encrypted card (MIFARE Plus SL1/SL3 card）
• 20,000 cards capacity & 100,000 event logs
• Cloud-based management portal for device management and OTA
• Supports Wiegand & RS485
• Tamper alarm
• Surface & flush mounting
• PoE or DC 12V power supply
- Description
Description
| Physical Property | ||||
| Frame | Aluminum Alloy | |||
| Front Panel | Tempered Glass | |||
| Power Supply | PoE or DC 12V | |||
| RFID Reader |
13.56MHz and 125kHz
|
|||
| Door Entry | RFID, PIN, NFC, Bluetooth, APP | |||
| IP/IK Rating | IP65 / IK08 | |||
| Installation | Flush Mounting & Surface Mounting | |||
| Dimension | 137 x 50 x 27 mm | |||
| Working Temperature | -40℃ – +55℃ | |||
| Storage Temperature |
-40℃ to +70℃
|
|||
| Working Humidity | 10%-90% (non-condensing) | |||
| Networking |
||||
| Protocol |
IPv4, HTTP, DNS, NTP, TCP, UDP, ICMP, DHCP, ARP
|
|||
| Port |
||||
| Input | 2 | |||
| Output | 1 Relay | |||
| Wiegand | Support | |||
| RS485 | Support | |||
| Ethernet Port | 1 x RJ45, 10/100 Mbps adaptive | |||
