Hot

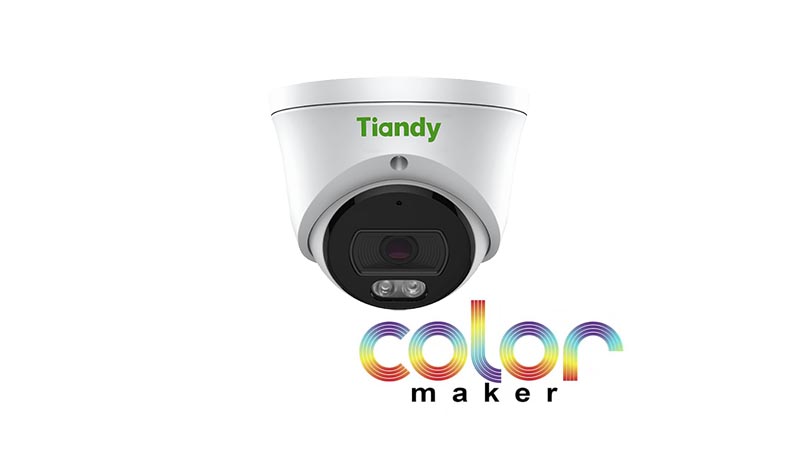

8MP Trilight Fixed Camera TC-C38XQ I3W/E/Y/2.8mm/V4.2
·Metal
·Up to 3840×2160@20fps
·S+265/H.265/H.264
·Min. illumination Color: 0.002Lux@F1.6
·Smart IR, IR Range: 30m
·Support tripwire，perimeter&Human/Vehicle Classification
·Built-in Mic, SD Card Solt
·Operating Conditions -40°~65°, 0~95% RH
·POE, IP67
- Description
- Additional information
Description
| Date | Title | Type | Download |
|---|---|---|---|
| 2022-12-13 | TC-C38XQ Spec-I3W-E-Y-2.8-V4.2 |  |
-
Camera Image Sensor 1/2.8″ CMOS Signal System PAL/NTSC Min. Illumination Color: 0.002Lux@ (F1.6, AGC ON), B/W: 0Lux with IR Shutter Time 1s to 1/100,000s Day & Night Dual IR Cut Filter with Auto Switch Wide Dynamic Range 120dB Angle Adjustment Bracket, pan: 0° to 340°, tilt: 0° to 75°, rotate: 0° to 360° Lens Lens Type Fixed Focus 2.8mm Lens Mount M12 Aperture F1.6, Fixed FOV Horizontal field of view: 105.3°
Vertical field of view: 56.9°
Diagonal field of view: 127.9°Illuminator IR LEDs 2 IR Range Up to 30 m Wavelength 850nm White LEDs/Warmlights 2 Range 15-20m Compression Standard Video Compression S+265/H.265/H.264 Video Bit Rate 32 Kbps~16 Mbps Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC Audio Bit Rate 8K~48Kbps Image Max. Resolution 3840×2160 Main Stream PAL：20fps（3840×2160,3072×2048）,25fps（2560×1440,2304×1296,1920×1080,1280×720） NTSC: 20fps（3840×2160,3072×2048）,30fps（2560×1440,2304×1296,1920×1080,1280×720） Sub Stream PAL: 25fps(704×576,704×288,352×288,640×360） NTSC: 30fps(704×480,704×240,352×240,640×360） Third Stream PAL：25fps(704×576,704×288,352×288,640×480） NTSC: 30fps(704×480,704×240,352×240,640×480） Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser Image Enhancement BLC/3D DNR/HLC ROI 8 OSD 16×16, 32×32, 48×48, 64×64, 96×96, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions Picture Overlay Yes Privace Mask Yes, 4 regions Smart Defog Yes Feature Alarm Trigger Motion Detection, Mask Alarm, IP Address Conflict Video Analytics Tripwire, Perimeter Early Warning(EW) Yes Network ANR Yes(Only Support Tiandy ANR NVR) Protocols HTTP,HTTPS,TCP/IP,UDP,UPnP,ICMP,IGMP,SNMP,DHCP,DNS,DDNS, Easy DDNS,NTP,SSL,802.1X,QoS,IPV4,IPV6,PPPoE,SSH,Unicast,Multicast,RTCP,ARP,SRTP,RTMP System Compatibility ONVIF (PROFILE S/T/G), SDK, CGI,Milestone,P2P Remote Connection ≤2 Client Easy7, EasyLive Plus Web Version Web6 Interface Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port Audio I/O 1/1 Alarm I/O 1/1 Speaker Yes Reset Button N/A On-board storage Built-in MicroSD card slot, up to 512 GB General Web Client Language 17 languages
Simplified Chinese/English/Traditional Chinese/Spanish/Italian/Korean/Turkish/Russian/Thai/Polish/French/Dutch/Hebrew/Vietnamese/Arabic/German/UkrainianOperating Conditions -40℃～65℃, 0～95% RH Power Supply DC 12V±25%, PoE (802.3af) Power Consumption MAX: 6.5W(12V) MAX: 8W(POE) Protection IP67 Heater N/A Dimensions 117×117x84mm Net Weight 0.5kg Gross Weight 0.7kg How Tiandy Trilight Works
