8MP Panoramic Camera TC-C382V W/E/Y/S/H/2.8mm
- Metal+Plastic Housing
- Up to 4640×1728@25fps
- 1/2.7″ CMOS
- S+265/H.265/H.264
- Min. illumination Color: 0.0001Lux@F1.0
- Warm Light
- Built-in Mic
- Built-in Speaker
- Operating Conditions -40°~65°, 0~95% RH
- Support human/vehicle classification
- Horizontal FOV 180°±10°
- POE
- Description
- Additional information
Description
| Date | Title | Type | Download |
|---|---|---|---|
| 2024-01-08 | TC-C382V SpecW-E-Y-S-H-2.8mm |  |
| Camera | |
| Image Sensor | 1/2.7″CMOS |
| Min. Illumination | Color: 0.0001Lux@F1.0 |
| Shutter Time | 1s-1/100000s |
| Day&Night | N/A |
| WDR | 120dB |
| S/N | >42dB |
| Angle Adjustment | 0~360°;0~90°;0~360° |
| Lens | |
| Lens Type | Fixed |
| Focal Length | 2.8mm |
| Lens Mount | M12 |
| Aperture Range | F1.0,fixed |
| Field of View | 180°(H)±10°;65°(V)±5°;191°(D)±10° |
| DORI Distance | Detect: 56m Observe: 22m Recognize: 11m Identify: 5.6m |
| Illuminator | |
| IR LEDs | N/A |
| IR Distance | N/A |
| Wavelength | N/A |
| White LEDs | 3 |
| Whitelight Distance | 10m |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG |
| Video Bit Rate | 32k-16Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio Sampling Rate | 8kHz/32kHz/48kHz |
| Image | |
| Max. Resolution | 4640×1728@25fps |
| Main Stream | PAL: 25fps(4640×1728,4096×1520) NTSC: 24fps(4640×1728,4096×1520) |
| Sub Stream | PAL: 25fps(1408×528) NTSC: 24fps(1408×528) |
| Third Stream | N/A |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/ Sodium lamp/Incandescent lamp/Locked white balance |
| ROI | 8 regions |
| Corridor mode | N/A |
| EIS | N/A |
| OSD | 5 regions;16*16/32*32/48*48/64*64/96*96 |
| Picture Overlay | Yes |
| Privacy Mask | 4 regions |
| Defog | Yes |
| Feature | |
| Alarm Trigger | Motion Detection;Mask Alarm;Voltage Alarm;Disk Full;Disk R/W Error;IP Address Conflict;MAC Address Conflict;FTP Server Exception ;Event Input, Event Output |
| Video Analytics | Human/Vehicle Classification;Tripwire;Perimeter |
| Rules of behavior analyse in 1 scene | 8 |
| Early Warning(EW) | Yes |
| Face Mode | N/A |
| Face Detection Performance | N/A |
| Linkage Method | send email;trigger sound;trigger warmlight;trigger recording;trigger capture; notify surveillance center |
| Network | |
| ANR | ANR |
| Protocols | HTTP;HTTPS;TCP/IP;UDP;UPnP;ICMP;IGMP;SNMP;DHCP;DNS;DDNS;Easy DDNS; NTP;SMTP;SSL;802.1X;QoS;IPv4;IPv6;PPPOE;SSH;Unicast;Multicast;RTCP;ARP;RTP; SRTP;RTSP;FTP;SFTP;NAS |
| System Compatibility | ONVIF Profile S/T/G/M;CGI;Milstone;RTMP |
| Remote Connection | ≤2 |
| Client | Easy7 Smart Client |
| Moblie Client | EasyLive Plus |
| Web | IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+ |
| Interface | |
| Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
| Audio I/O | 1;1 |
| Alarm I/O | 1;1 |
| Built-In Mic | Yes |
| Built-In Speaker | Yes |
| Reset Button | Yes |
| On-board storage | Built-in Micro SD card slot, up to 512 GB |
| Additional interfaces | N/A;N/A;N/A;N/A |
| General | |
| Web Client Language | 19languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/ Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/ Portuguese/Albanian |
| Operating Temperature | -40℃-65℃ |
| Operating Humidity | 0-95%(non-condensing) |
| Storage Temperature | -40℃-65℃ |
| Storage Humidity | 0-95%(non-condensing) |
| Power Supply | DC12V±25%,MAX 12W;POE 802.3at |
| Protection | Surge protection 2000V;Lightning proof 6000V;IP67 |

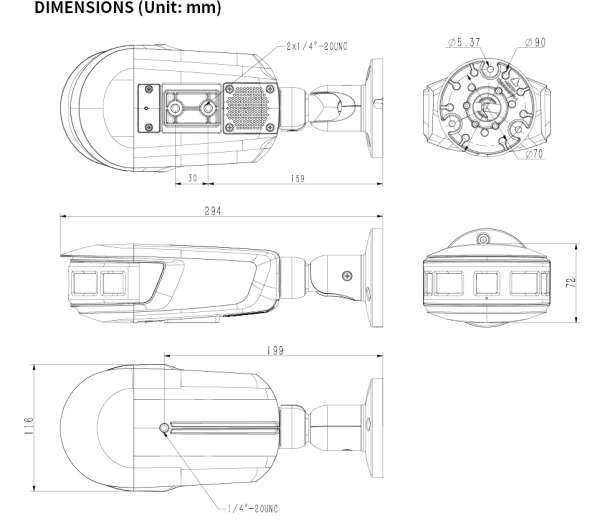

| Boundary Dimensions | 294(L)116(W)72(H)mm |
| Package Dimensions | 360(L)150(W)170(H)mm |
| GrossWeight | 1.25kg |
| NetWeight | 0.85kg |
