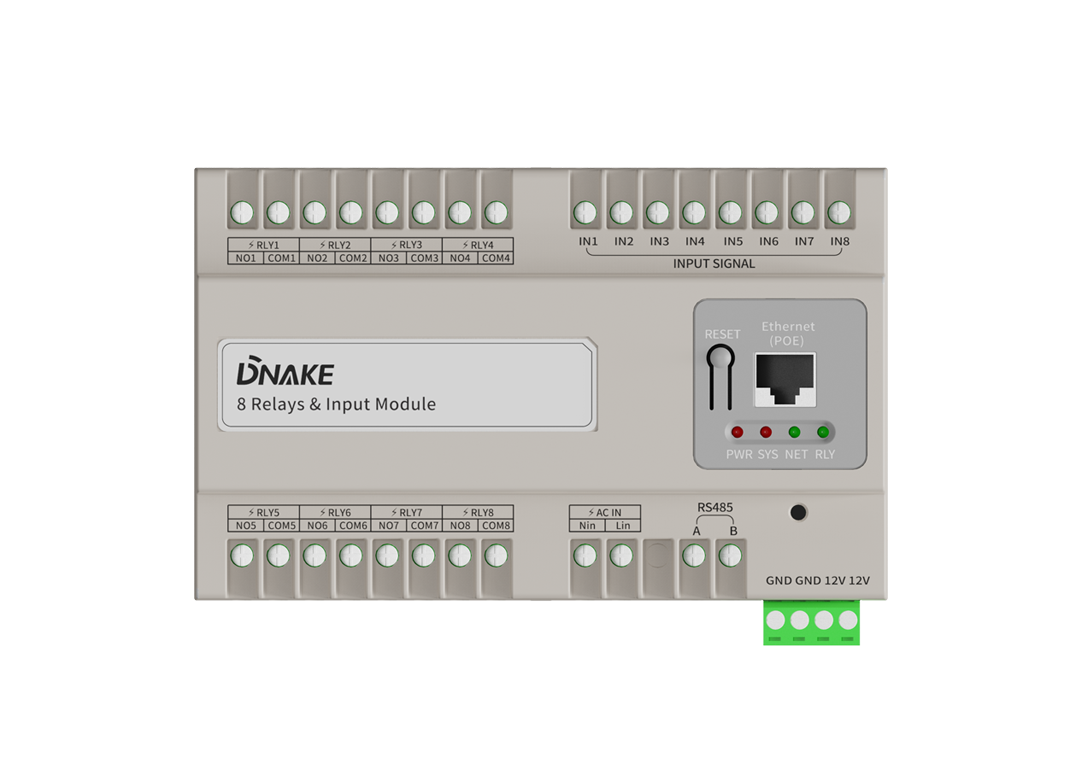

8 Relays & Input Module RIM08
- Multi-input/output: support up to eight channels of switch signal input and eight channels of output control over electrical appliances
- Remote control by Smart Pro APP or indoor monitor 280M-S3/E216
- Support the control of a variety of different devices, such as lights, heating, natural gas, curtains, water valves, etc.
- Security linkage with indoor monitor to trigger automatic actions
- Powered by PoE or power adapter (DC12V/2A)
- Household connection of up to 9 modules for 72 electrical devices
- DIN-rail installation
- Description
Description
| Physical Property | ||||
| Material | Plastic | |||
| Power Supply |
PoE (802.3af) or DC 12V/1A
|
|||
| Rated Power | 5W | |||
| Dimension | 91 x 145 x 61mm | |||
| Working Temperature | -10℃ ~ +55℃ | |||
| Storage Temperature | -40℃ ~ +70℃ | |||
| Working Humidity | 10% ~ 90% (non-condensing) | |||
| Installation |
Rail Mounting
|
|||
| Port | ||||
| Reset Button | 1 | |||
| RS485 | 1 | |||
| Relay Output | 8 | |||
| Alarm Input | 8 | |||
|
Ethernet Port
|
1 x RJ45, 10/100 Mbps adaptive
|
|||
