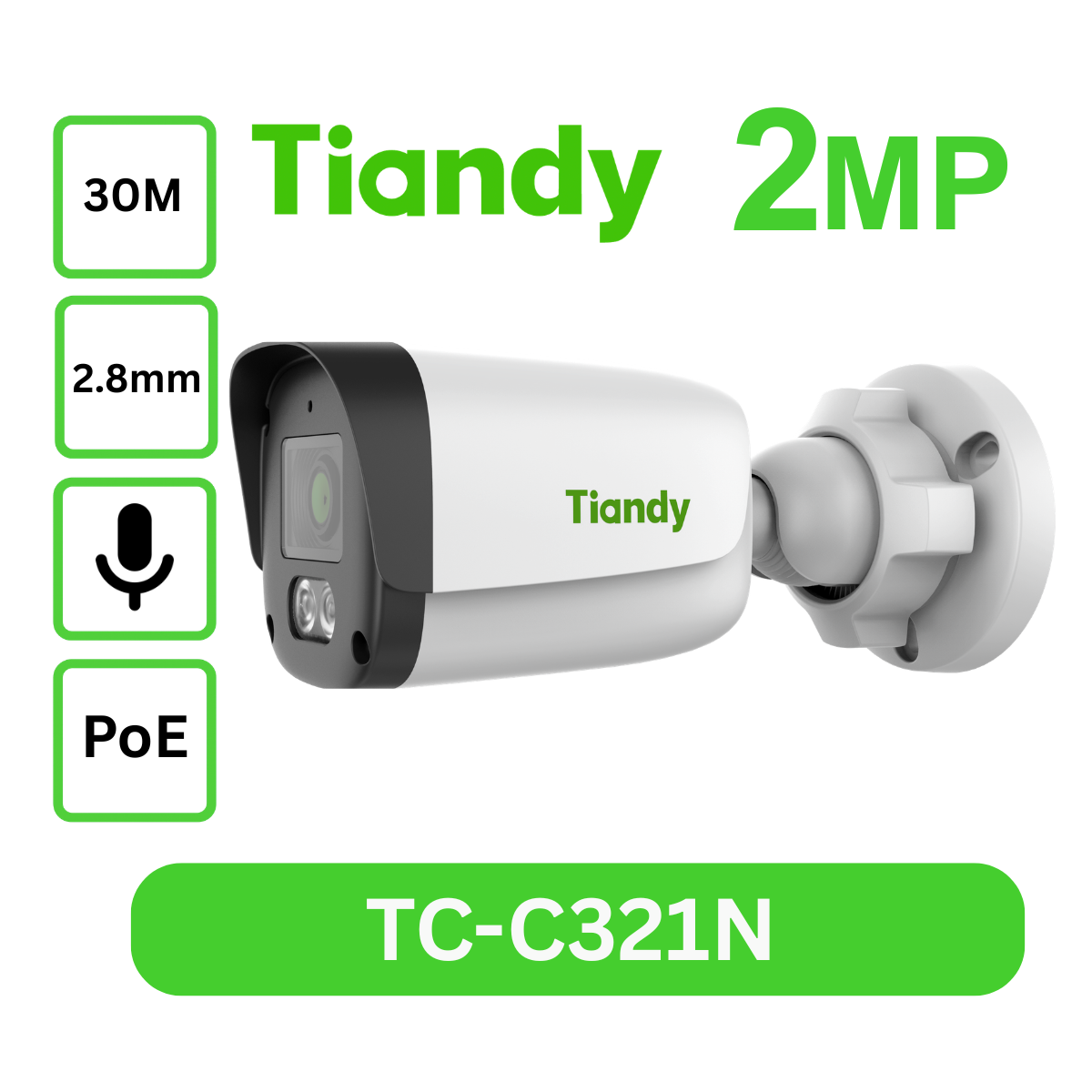

2MP Fixed TC-C321N IR Bullet Camera I3/E/Y/2.8mm/V2.0
- Plastic Housing
- Up to 1920×1080@30fps
- S+265/H.265/H.264
- Min. illumination Color: 0.04Lux@F2.2
- Smart IR, IR Range: 30m
- Built-in Mic
- Operating Conditions -30°~60°, 0~95% RH
- POE, IP67
- Support motion detection
- Description
- Additional information
Description
| Date | Title | Type | Download |
|---|---|---|---|
| 2023-12-09 | TC-C321N Spec I3-E-Y-2.8mm-V2.0 |  |
| Camera | |
| Image Sensor | 1/3″CMOS |
| Min. Illumination | Color:0.04Lux@(F2.2,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s-1/100000s |
| Day&Night | IR-cut filter with auto switch (ICR) |
| WDR | DWDR |
| S/N | >37dB |
| Angle Adjustment | 0-360°;0-80°;0-360° |
| Lens | |
| Lens Type | Fixed |
| Focal Length | 2.8mm |
| Lens Mount | M12 |
| Aperture Range | F2.2,Fixed |
| Field of View | 94.4°(H);53.2°(V);108.2°(D) |
| DORI Distance | Detect:40.0m Observe:15.9m Recognize:8.0m Identify:4.0m |
| Illuminator | |
| IR LEDs | 2 |
| IR Distance | 30m |
| Wavelength | 850nm |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k-4Mbps |
| Audio Compression | G.711A/G.711U |
| Audio Sampling Rate | 8kHz |
| Image | |
| Max. Resolution | 1920×1080@30fps |
| Main Stream | PAL:25fps(1920×1080,1280×720,704×576,640×480) NTSC:30fps(1920×1080,1280×720,704×480,640×480) |
| Sub Stream | PAL:25fps(704×576,704×288,352×288,640×360) NTSC:30fps(704×480,704×240,352×240,640×360) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-auto/Manual |
| OSD | 1 region;16*16/32*32/48*48 |
| Privacy Mask | 4 regions |
| Defog | Yes |
| Feature | |
| Alarm Trigger | Motion Detection |
| Network | |
| ANR | N/A |
| Protocols | HTTP;TCP/IP;UDP;ICMP;DHCP;DNS;NTP;IPv4;Telnet;Unicast |
| System Compatibility | ONVIF Profile S/T |
| Remote Connection | 1 |
| Moblie Client | N/A |
| Web | IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+ |
| Interface | |
| Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
| Built-In Mic | Yes |
| General | |
| Web Client Language | English |
| Operating Temperature | -30℃-60℃ |
| Operating Humidity | 0-95%(non-condensing) |
| Storage Temperature | -30℃-60℃ |
| Storage Humidity | 0-95%(non-condensing) |
| Power Supply | POE 802.3af;MAX 3W |
| Protection | Surge protection 2000V;Lightning proof 6000V;IP67 |
| Boundary Dimensions | 140(L)60(W)60(H)mm |
| Package Dimensions | 155(L)75(W)85(H)mm |
| GrossWeight | 0.2kg |
| NetWeight | 0.15kg |
